HDG Soil Nail in Dia28mm Grade 500 for Slope Stabilization

Short Description:

HDG Soil Nail in Dia28mm Grade 500 for Slope Stabilization Product Introduction Soil Nails (or PT bars) are high-strength, high-precision, straight-line steel bars with external threads on the entire steel bar. The steel bar can be screwed onto the connector with internal threads at any section or screwed with a threaded nut with internal threads for anchoring. The utility model has the advantages of simple connection and anchorage, strong adhesion, safe and reliable tension and anchorage and...


  • Grade: 830/1030
  • Diameter: : 15-75
  • Tensile Strength: 1030Mpa
  • Yield Strength: 830MPa
  • Accessories: Hex Nut, Dome Nut, Spherical Nut, Coupler, Flat plate, Dome Plate, Spherical Plate
  • Product Detail

    Parameter

    Mechanical Properties

    Product Tags

    HDG Soil Nail in Dia28mm Grade 500 for Slope Stabilization

    Product Introduction

    Soil Nails (or PT bars) are high-strength, high-precision, straight-line steel bars with external threads on the entire steel bar. The steel bar can be screwed onto the connector with internal threads at any section or screwed with a threaded nut with internal threads for anchoring. The utility model has the advantages of simple connection and anchorage, strong adhesion, safe and reliable tension and anchorage and the like, and is a novel material for developing prestressed concrete component.

    Soil Nails are currently used to anchor and support the dam body form of the dam foundation. In the cable-stayed bridge, fully threaded bars are used as the main ribs and bridge foundations of the main tower. The use of fully threaded steel bars saves steel, reduces component area and reduces component weight.

    The continuous external thread is hot rolled. The shape of thread bar is shown as following figure. The main dimension ranges from ⌀15mm-⌀50mm and the grade ranges from 500/630Mpa to 1200/1330Mpa.













    Product Name Soil Nail in Dia. 28mm Grade 500
    Yield Strength 500Mpa
    Tensile Strength 630Mpa
    Elongation 10
    Length 12m or any length you need
    Technique Hot Rolled
    Diameter available 20mm, 25mm, 32mm, 36mm, 40mm
    Accessories Nuts, Couplers, Plates, Washer, Centralizer



    Company Introduction

    Since the establishment of the company in 2008, Tianjin Cathay Pacific Steel Co.,Ltd has focused on Screw Threaded Steel products and related construction products. The products on the market are: FT Bar, its accessories: nuts, plates, couplers, spiral bars, PC strand wires and anchors, metal and plastic ducts, etc.

    Our company always regards product quality as the lifeline of the company, adheres to the rigorous, efficient and innovative concept to serve customers, and we are willing to cooperate with new and old customers at home and abroad to provide customers with better quality service and quality products.



    The Projects We Participated in:

    1. Hongkong- Zhuhai-Macao Bridge

    2. Mongolian Shangri-la Hotel

    3. The Uzbek Railway Engineering

    4. Cambodia San Secondary Hydropower Station

    5. Brunei PMB Cross- Sea Bridge

    6. Malaysia DASH CB4 Expressway Project

    7. Papua New Guinea Hilton Hotel

    8. Bangladesh Airport Projects

    Application: Bridge, Tunneling, Mining, Soil Nailing,  Slope Stabilizing,

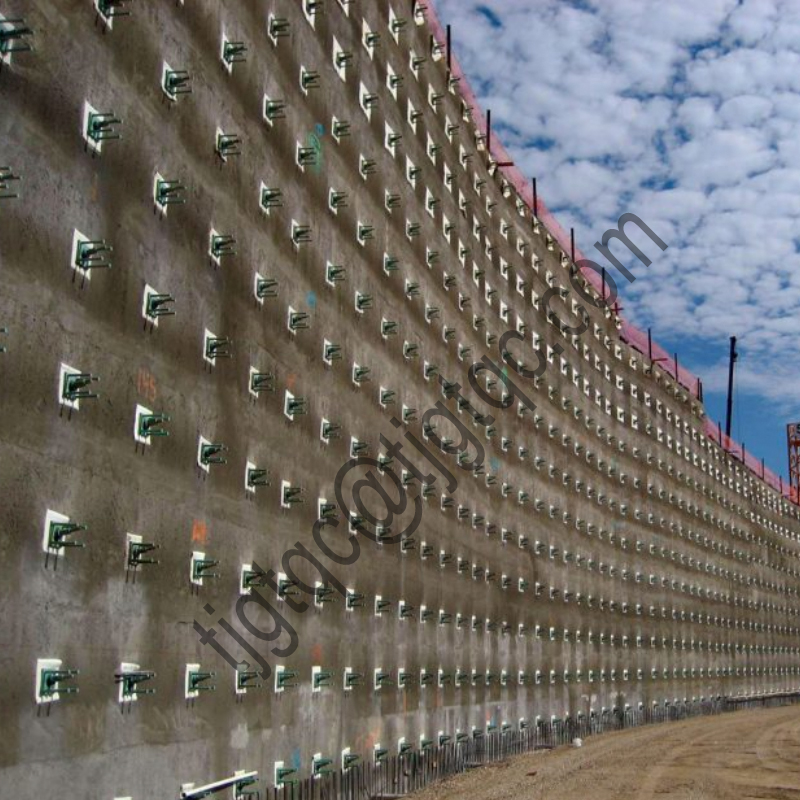

    Soil Nail 2



    application

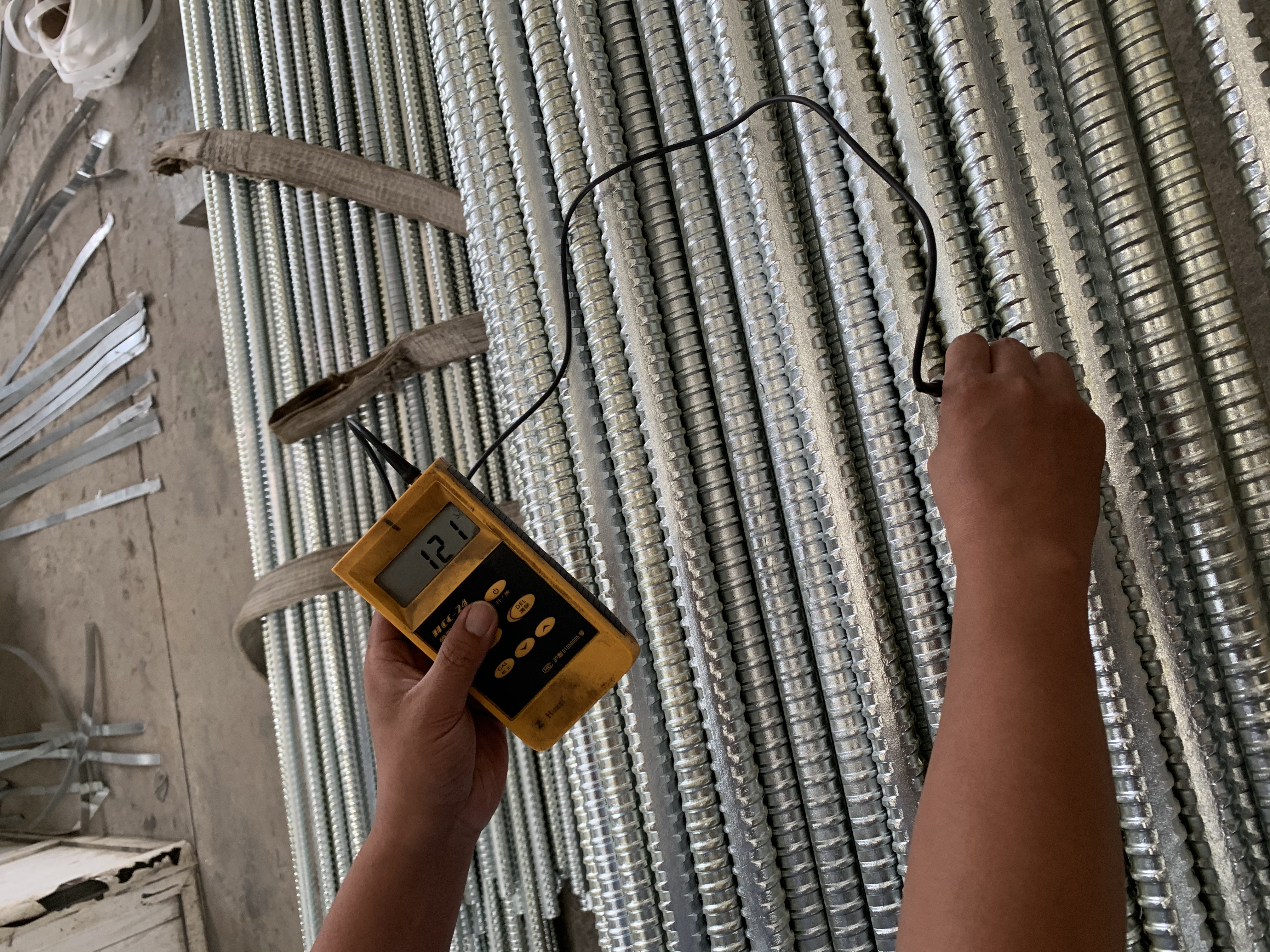

    HDG3



    Contact Information:

    Wendy Lee

    Tianjin Cathay Pacific Steel Co.,Ltd

    Email: tjgtqc@tjgtqc.com

    Mobile/WhatsApp/WeChat :+86-176 1227 5091

    Add: B10-1-2, Kexin Industrial Area, Beichen District, Tianjin, China


  • Previous:
  • Next:

  • continuous threaded bar

    Nominal Diameter Diameter H B L Nominal Section Nominal Weight
    Dv Dh
    mm mm mm mm mm mm mm2 kg/m
    15 15 15 1.0 4.5 10 176 1.47
    18 18 18 1.0 4.0 10 254.5 2.11
    20 20 20 1.3 4.8 10 314 2.47
    25 25 25 1.6 6.0 12 490.9 4.10
    32 32 32 2.0 7.0 16 804.2 6.65
    36 36 36 2.5 8.0 18 1018 8.41
    40 40 40 3.0 8.0 20 1256.6 10.34
    50 50 50 3.0 9.0 24 1963.5 16.28
    60 60 60 3.0 10.0 22 2827 23.26
    63.5 63 63.5 3.0 12.0 22 3167 26.20
    65 65 65 3.0 12.0 22 3318 27.470
    70 70 70 3.0 12.0 22 3848 31.8
    75 75 75 3.0 12.0 22 4418 36.9
    Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
    mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
    20 314 500 630 157 198 10 2.47
    25 491 500 630 246 309 10 4.1
    28 615 500 630 308 387 10 4.83
