Threaded Steel Bar psb930-32 with high tensile strength
System Description:
The screw thread steel bars for the prestressing of concrete manufactured by our company is a high tensile alloy steel bar which features a coarse right-hand thread over its full length and available in two standard lengths, namely 9m and 12m,yet,special length is negotiable based on user’s demand subject to the maximum length of 18m.
A post tension bar is a strong metal rod that is used in the construction of concrete structures such as bridges, buildings, and parking garages. Its advantage over traditional reinforcement is that it creates a compressive force within the concrete, which helps to counteract the tensile forces that the structure will experience over time.
| Grade | PSB500，PSB830，PSB930，PSB1080 |
| Diameter | 15mm,20mm,25mm,28mm,32mm,36mm,40mm,50mm,57mm, 63.5mm, 75mm |
Applications:

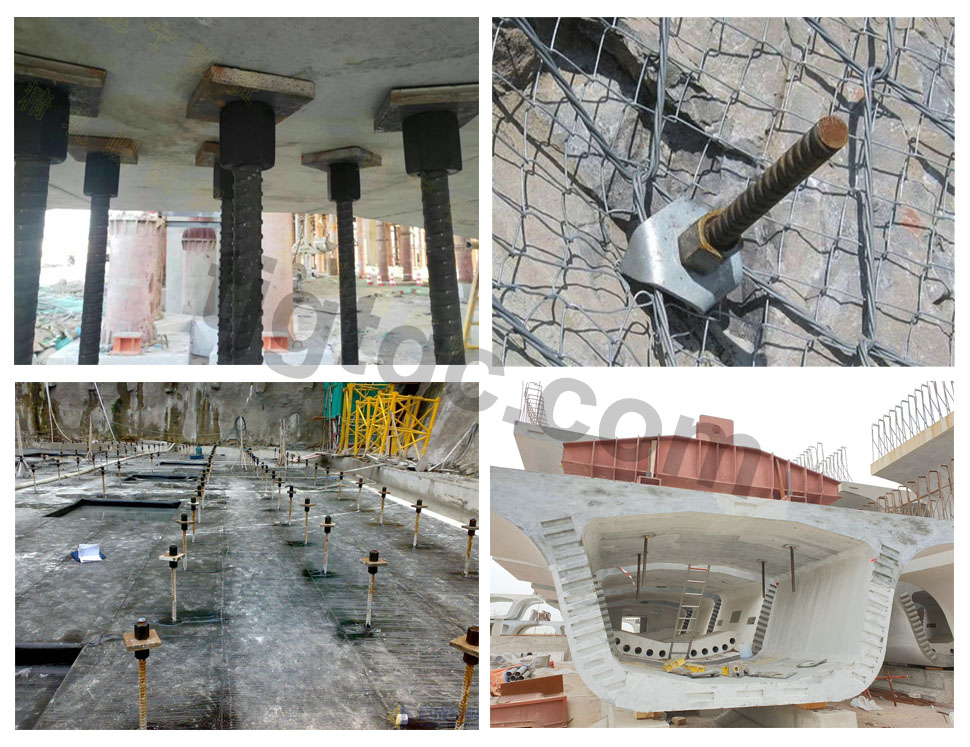

Our thread bar systems are used for connections, formwork and anchorages and have been installed in large-scale construction projects worldwide. Whether for building, underground, bridge or road construction, tunnelling or mining.
Post-tensioning systems are used to strengthen existing structures, such as bridges and concrete structures, that are experiencing increased loads or are aging. These systems can compensate for deficiencies in the original design and improve the infrastructure's longevity
1. Different grade: 500/630, 830/1030, 930/1080, 1080/1230
2. Diameter range: 15mm, 20mm, 25mm, 32mm, 36mm, 40mm, 50mm, 63.5mm, 75mm
3. Usage: rock bolt, soil nailing, tunneling, mining, bridge construction
Stock with fastest dlievery
Address
3-2-502, Qingda Park, the Cross of Longxing Road and Shuangjiang Road, Beichen District, Tianjin
tjgtqc@tjgtqc.com
Phone
WA/Wechat: +86-17612275091
Tel/Fax: +86-22-84612322
Hours
Monday-Friday: 9am to 6pm
Saturday, Sunday: Closed
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
