Wing Nuts with plates for PT Bar/PC Bar in dia. 15/17mm

Short Description:

Nuts with plates for PT Bar/PC Bar in dia. 15/17mm Product Introductio Product Name Nominal Diameter Material SW H OD Hardness Weight Dome Nut (mm) (-) (mm) (mm) (mm) (HRC) (kg) 25 S45C/40Cr 50 75 72 28-38 1.12 32 S45C/40Cr 60 90 80 28-38 1.97 36 40Cr 65 100 90 28-38 2.57 40 40Cr 70 115 100 28-38 3.38 50 40Cr 85 145 120 28-38 5.81   Company Introduction Since the establi...


  • Technique: Cast
  • Size: 15*17*10cm
  • Weight: 1.07kg
  • Dia.: 15mm
  • Product Detail

    Parameter

    Mechanical Properties

    Product Tags

    Nuts with plates for PT Bar/PC Bar in dia. 15/17mm

    Product Introductio

    Drawing of Dome Nut

    Product Name

    Nominal Diameter

    Material

    SW

    H

    OD

    Hardness

    Weight

    Dome Nut

    (mm)

    (-)

    (mm)

    (mm)

    (mm)

    (HRC)

    (kg)

    25

    S45C/40Cr

    50

    75

    72

    28-38

    1.12

    32

    S45C/40Cr

    60

    90

    80

    28-38

    1.97

    36

    40Cr

    65

    100

    90

    28-38

    2.57

    40

    40Cr

    70

    115

    100

    28-38

    3.38

    50

    40Cr

    85

    145

    120

    28-38

    5.81

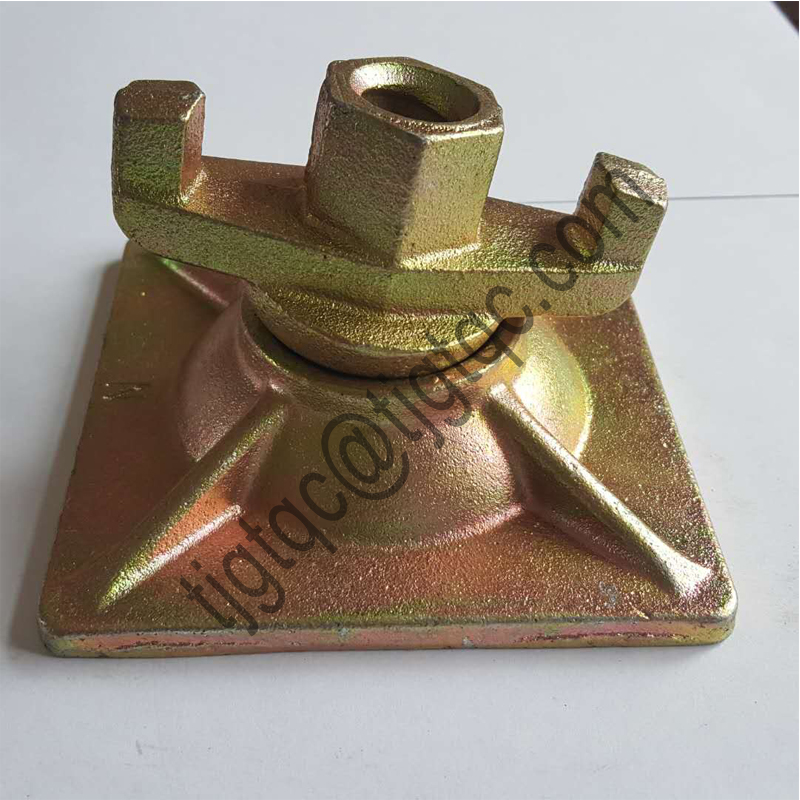

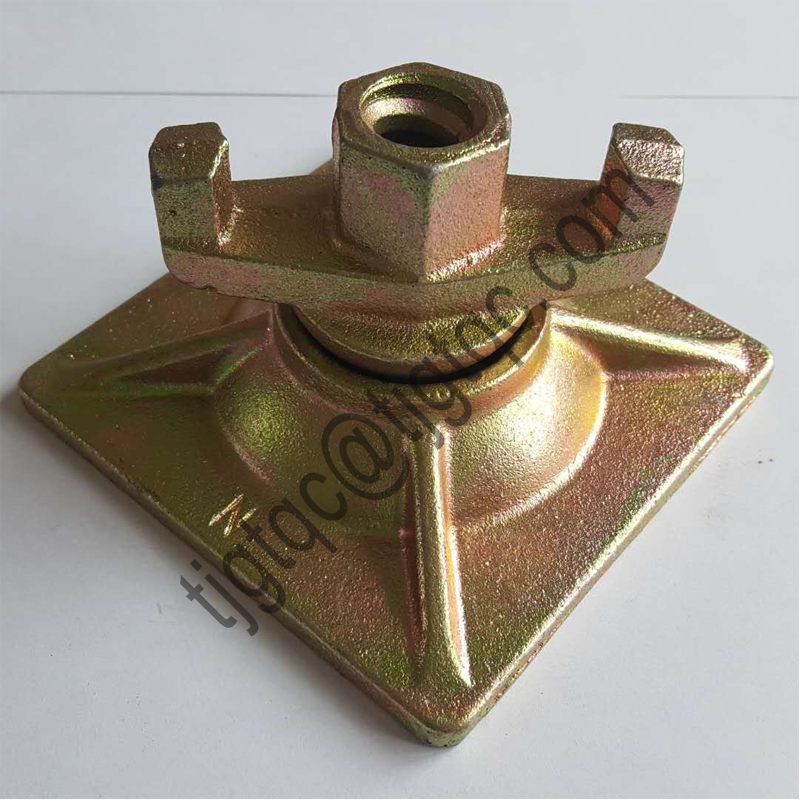

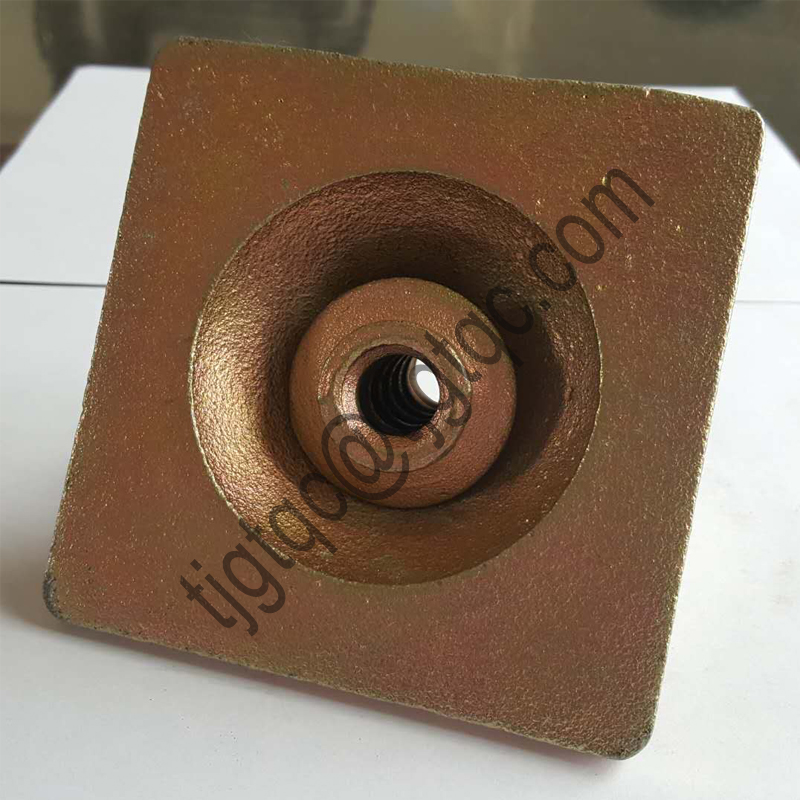

    Nut3 Nut2 Nut

    Company Introduction

    Since the establishment of the company in 2008, Tianjin Cathay Pacific Steel Co.,Ltd has focused on Screw Threaded Steel products and related construction products. The products on the market are: FT Bar, its accessories: nuts, plates, couplers, spiral bars, PC strand wires and anchors, metal and plastic ducts, etc.

    Our company always regards product quality as the lifeline of the company, adheres to the rigorous, efficient and innovative concept to serve customers, and we are willing to cooperate with new and old customers at home and abroad to provide customers with better quality service and quality products.



    The Projects We Participated in:

    1. Hongkong- Zhuhai-Macao Bridge

    2. Mongolian Shangri-la Hotel

    3. The Uzbek Railway Engineering

    4. Cambodia San Secondary Hydropower Station

    5. Brunei PMB Cross- Sea Bridge

    6. Malaysia DASH CB4 Expressway Project

    7. Papua New Guinea Hilton Hotel

    8. Bangladesh Airport Projects

    Application: Bridge, Tunneling, Mining, Soil Nailing,  Slope Stabilizing,

    PC Bar3

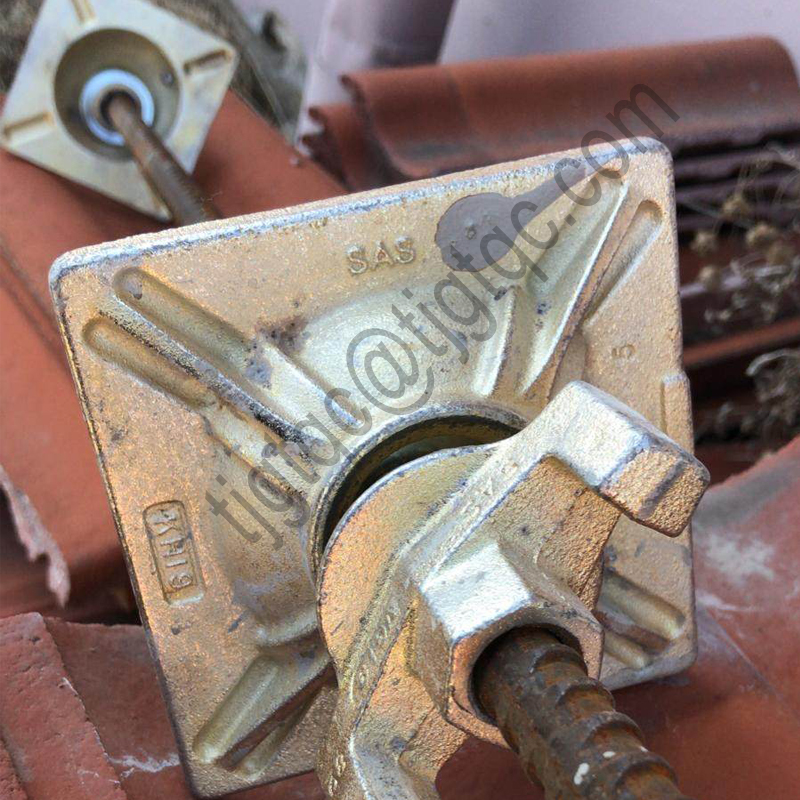

    Wing nut



     Contact Information:

    Wendy Lee

    Tianjin Cathay Pacific Steel Co.,Ltd

    Email: tjgtqc@tjgtqc.com

    Mobile/WhatsApp/WeChat :+86-176 1227 5091

    Add: B10-1-2, Kexin Industrial Area, Beichen District, Tianjin, China


  • Previous:
  • Next:

  • continuous threaded bar

    Nominal Diameter Diameter H B L Nominal Section Nominal Weight
    Dv Dh
    mm mm mm mm mm mm mm2 kg/m
    15 15 15 1.0 4.5 10 176 1.47
    18 18 18 1.0 4.0 10 254.5 2.11
    20 20 20 1.3 4.8 10 314 2.47
    25 25 25 1.6 6.0 12 490.9 4.10
    32 32 32 2.0 7.0 16 804.2 6.65
    36 36 36 2.5 8.0 18 1018 8.41
    40 40 40 3.0 8.0 20 1256.6 10.34
    50 50 50 3.0 9.0 24 1963.5 16.28
    60 60 60 3.0 10.0 22 2827 23.26
    63.5 63 63.5 3.0 12.0 22 3167 26.20
    65 65 65 3.0 12.0 22 3318 27.470
    70 70 70 3.0 12.0 22 3848 31.8
    75 75 75 3.0 12.0 22 4418 36.9
    Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
    mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
    20 314 500 630 157 198 10 2.47
    25 491 500 630 246 309 10 4.1
    28 615 500 630 308 387 10 4.83
