Wholesale Copper Hex Nuts - Anchor Coupler for Formwork Tie Rod – Cathay Detail:
Anchor Coupler for Formwork Tie Rod

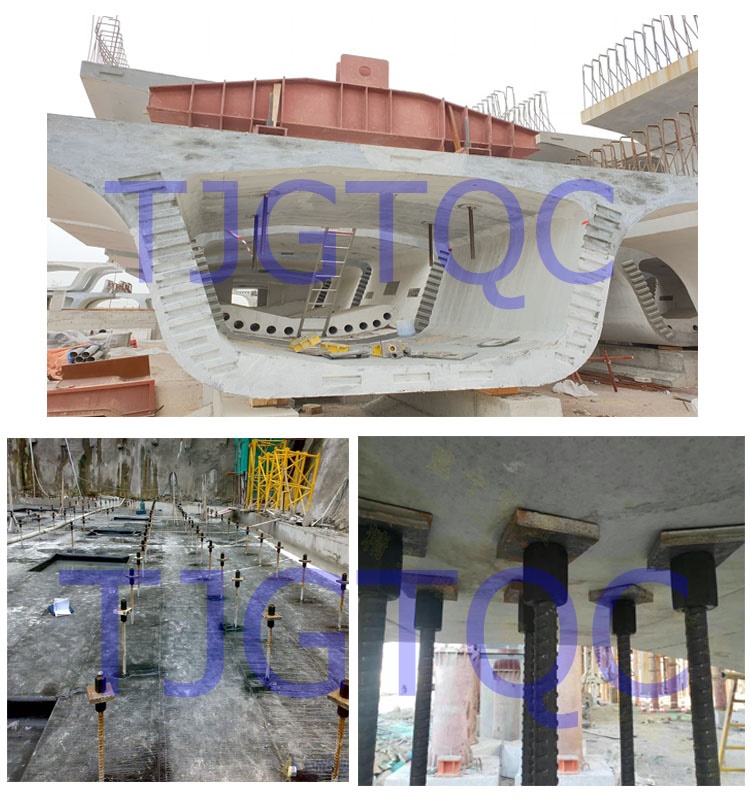

Application: PT bar/Post tensioning Bar normally use for soil nailing,rock bolts,formwork,ground anchors,bridge,highway,railway etc
Fast Delivery for Post Tesoining Bar
Sophia Wang
Marketing | Tianjin Cathay Pacific Steel Co.,Ltd.
*Geotechnical *Reinforcing *Post-Tensioning *Ground Anchors *Tunneling *Mining
Nob No.: 0086 185 2252 9216
Email: sophia at tjgtqc.com
Product detail pictures:

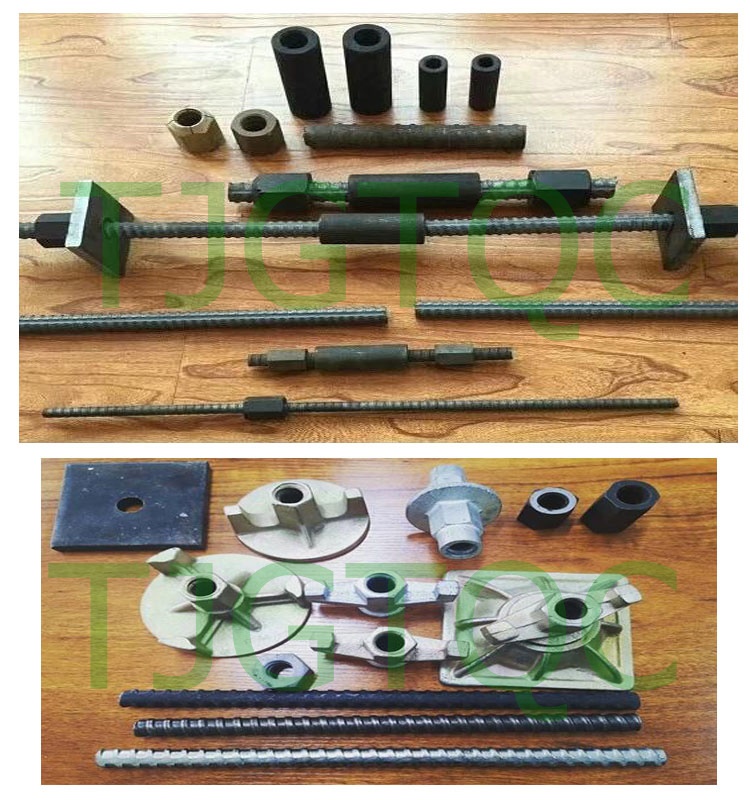

Related Product Guide:
We've our have sales staff, style and design staff, technical crew, QC team and package workforce. We've strict excellent control procedures for each system. Also, all of our workers are experienced in printing field for Wholesale Copper Hex Nuts - Anchor Coupler for Formwork Tie Rod – Cathay, The product will supply to all over the world, such as: France , New Orleans , Cyprus , We are sticking to excellent quality, competitive price and punctual delivery and better service, and sincerely hope to establish long-term good relationships and cooperation with our new and old business partners from all over the world. Sincerely welcome you to join us.

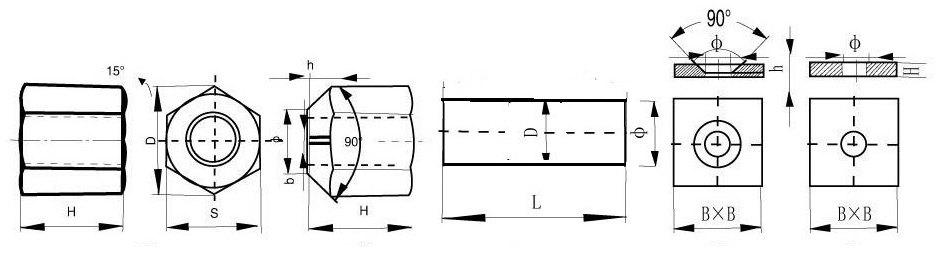

Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
Dv | Dh | ||||||
mm | mm | mm | mm | mm | mm | mm2 | kg/m |
15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
