Post Tensioning Systems Bar for Bridge projects Grade 1080

Short Description:


Product Detail

Parameter

Mechanical Properties

Product Tags

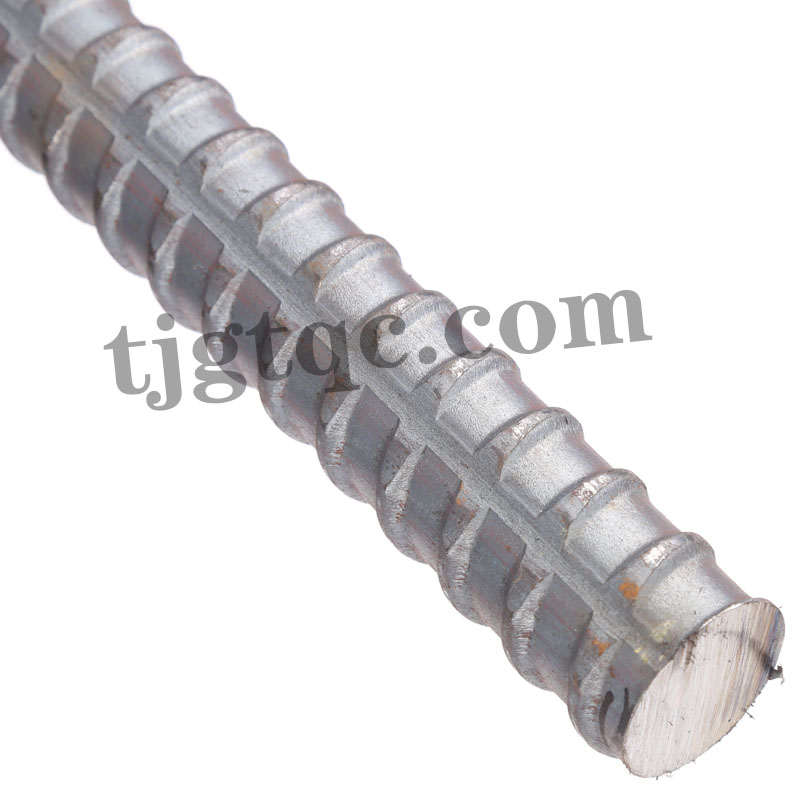

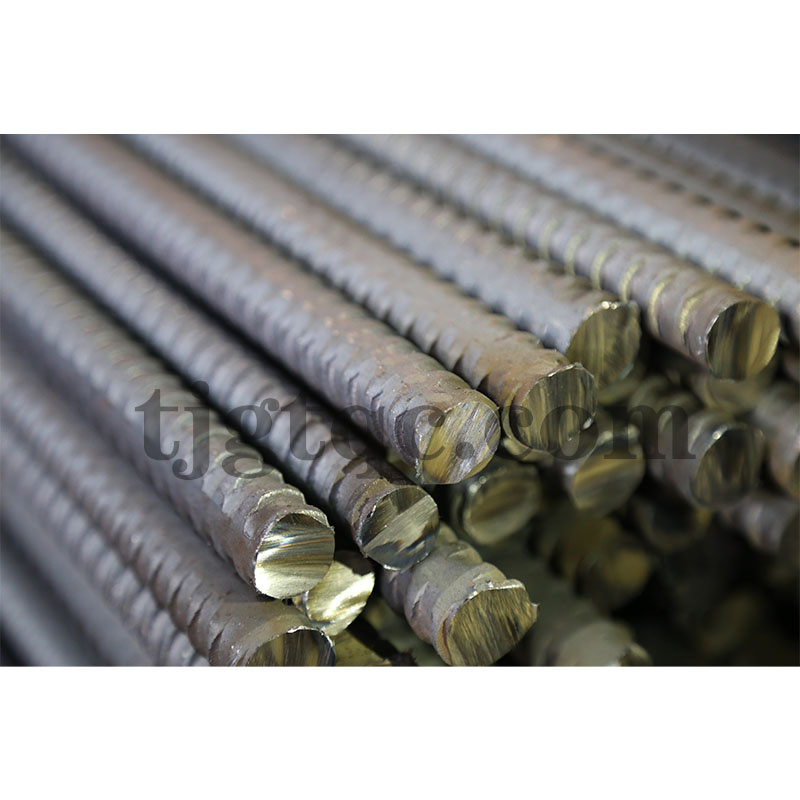

Post Tensioning Systems Bar for Bridge projects Grade 1080

12 13 14

PT bar size

Grade 950 PT bar/Dia.40 Post tensioning Bar
Grade No. 500/670,785/980,830/1030,930/1080,1080/1230,1200/1330
Standard GB,ASTM
Diameter 15mm to 75mm
Length 6m,12m or cutting any length
Surface Black,Hot Dip Galvanized,Epoxy Coating

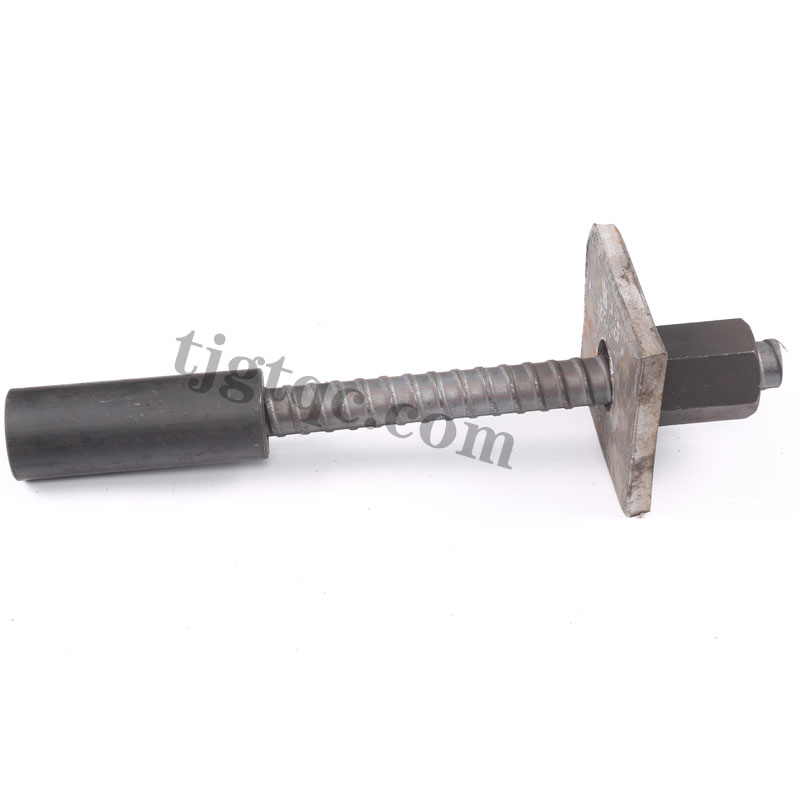

Accessories Hex Nut,Coupler,Plate

Application: Grade 950 PT bar/Post tensioning Bar normally use for soil nailing,rock bolts,formwork,ground anchors,bridge,highway,railway etc

PC bar application

pt bar application

Fast Delivery for Post Tesoining Bar

shipping delivery

We have all series of Prestressing Steel

related products

Sophia Wang

Nob No.: 0086 185 2252 9216

Email: sophia at tjgtqc.com







  • Previous:
  • Next:

  • continuous threaded bar

    Nominal Diameter Diameter H B L Nominal Section Nominal Weight
    Dv Dh
    mm mm mm mm mm mm mm2 kg/m
    15 15 15 1.0 4.5 10 176 1.47
    18 18 18 1.0 4.0 10 254.5 2.11
    20 20 20 1.3 4.8 10 314 2.47
    25 25 25 1.6 6.0 12 490.9 4.10
    32 32 32 2.0 7.0 16 804.2 6.65
    36 36 36 2.5 8.0 18 1018 8.41
    40 40 40 3.0 8.0 20 1256.6 10.34
    50 50 50 3.0 9.0 24 1963.5 16.28
    60 60 60 3.0 10.0 22 2827 23.26
    63.5 63 63.5 3.0 12.0 22 3167 26.20
    65 65 65 3.0 12.0 22 3318 27.470
    70 70 70 3.0 12.0 22 3848 31.8
    75 75 75 3.0 12.0 22 4418 36.9
    Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
    mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
    20 314 500 630 157 198 10 2.47
    25 491 500 630 246 309 10 4.1
    28 615 500 630 308 387 10 4.83
