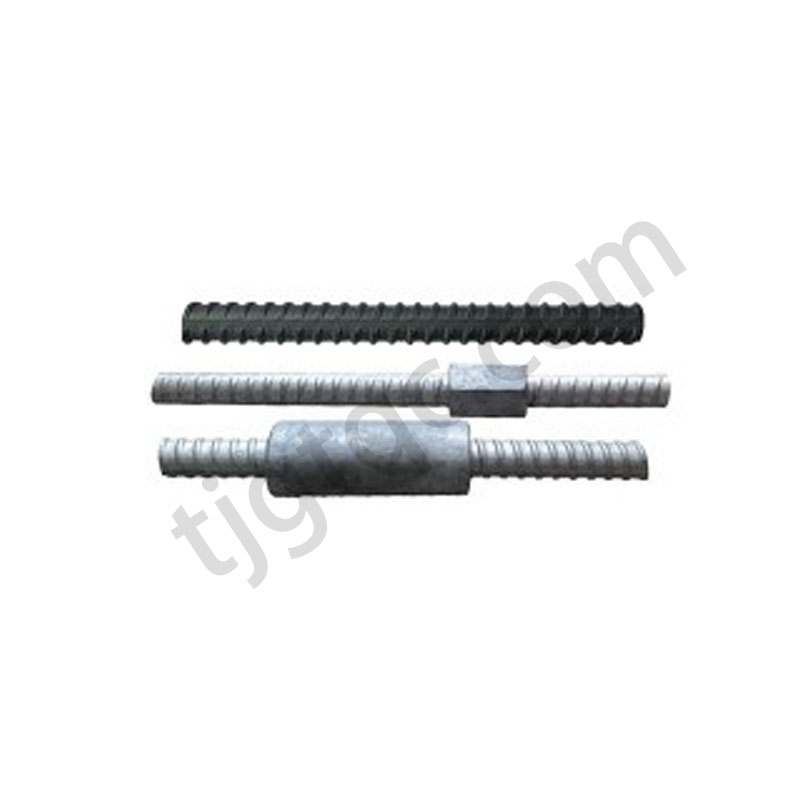

Fully Threaded Steel Bar PSB1080/1230

Short Description:


Product Detail

Parameter

Mechanical Properties

Product Tags

The continuous external thread is made by hot extrolling method. The shape of thread bar is shown as following figure. The main diameter is 15mm to 75mm and the strength is 500MPa to  1080MPa.

Fully Threaded Steel Bars / Post-Tensioning Bars

Grade: PSB1080

Length: 6m,9m, and 12m or Cutting sizes as requests.

Application: High-speed Railway, bridge, concrete anchoring system, formwork panels,  industrial facilities, precast-construction, water treatment plants





ter (1)

gsdf

8


  • Previous:
  • Next:

  • continuous threaded bar

    Nominal Diameter Diameter H B L Nominal Section Nominal Weight
    Dv Dh
    mm mm mm mm mm mm mm2 kg/m
    15 15 15 1.0 4.5 10 176 1.47
    18 18 18 1.0 4.0 10 254.5 2.11
    20 20 20 1.3 4.8 10 314 2.47
    25 25 25 1.6 6.0 12 490.9 4.10
    32 32 32 2.0 7.0 16 804.2 6.65
    36 36 36 2.5 8.0 18 1018 8.41
    40 40 40 3.0 8.0 20 1256.6 10.34
    50 50 50 3.0 9.0 24 1963.5 16.28
    60 60 60 3.0 10.0 22 2827 23.26
    63.5 63 63.5 3.0 12.0 22 3167 26.20
    65 65 65 3.0 12.0 22 3318 27.470
    70 70 70 3.0 12.0 22 3848 31.8
    75 75 75 3.0 12.0 22 4418 36.9
    Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
    mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
    20 314 500 630 157 198 10 2.47
    25 491 500 630 246 309 10 4.1
    28 615 500 630 308 387 10 4.83
