M40 Tie Rod Anchor Bolt in Grade 1080/1230

Product Introduction

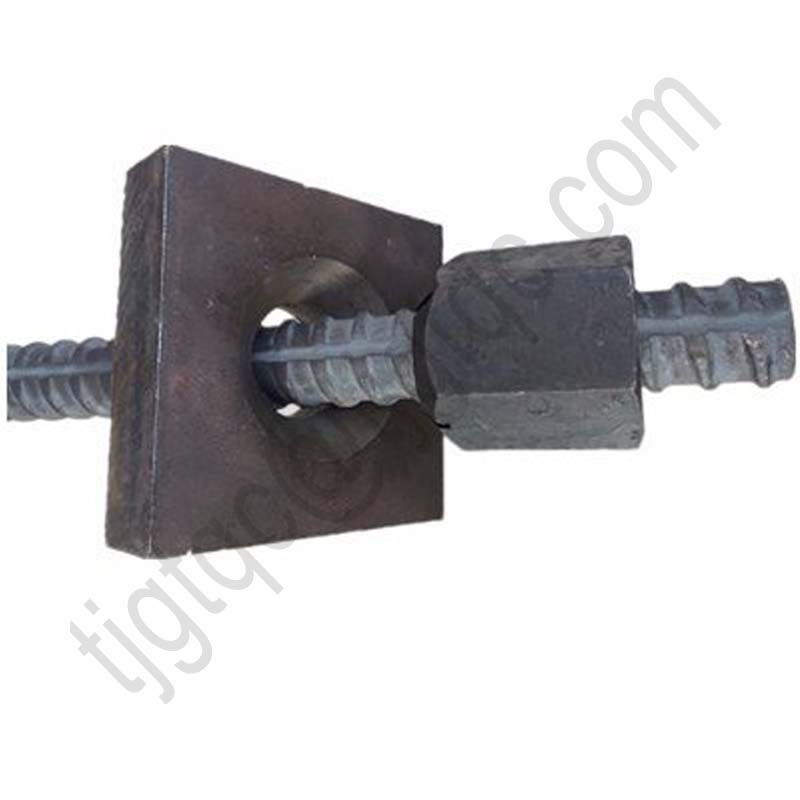

Prestressed threaded bar (or PT bars) are high-strength, high-precision, straight-line steel bars with external threads on the entire steel bar. The steel bar can be screwed onto the connector with internal threads at any section or screwed with a threaded nut with internal threads for anchoring. The utility model has the advantages of simple connection and anchorage, strong adhesion, safe and reliable tension and anchorage and the like, and is a novel material for developing prestressed concrete component.

Fully threaded steel bars are currently used to anchor and support the dam body form of the dam foundation. In the cable-stayed bridge, fully threaded bars are used as the main ribs and bridge foundations of the main tower. The use of fully threaded steel bars saves steel, reduces component area and reduces component weight.

The continuous external thread is hot rolled. The shape of thread bar is shown as following figure. The main dimension ranges from ⌀15mm-⌀50mm and the grade ranges from 500/630Mpa to 1200/1330Mpa.













Nominal Diameter

Diameter

H

B

L

Nominal Section

Nominal Weight

Dv

Dh

mm

mm

mm

mm

mm

mm

Area(mm2)

Kg/m

15

15

15

1.0

4.5

10

176

1.47

18

18

18

1.2

4.0

10

254.5

2.11

20

20

20

1.3

4.8

10

314

2.47

25

25

25

1.6

6.0

12

490.9

4.10

32

32

32

2.0

7.0

16

804.2

6.65

36

36

36

2.5

8.0

18

1018

8.41

40

40

40

3.0

8.0

20

1256.6

10.34

50

50

50

3.0

9.0

24

1963.5

16.28

60

60

60

3.0

10.0

22

2827

23.36

63.5

63

63.5

3.0

12.0

22

3167

26.20

65

65

65

3.0

12.0

22

3318

27.4

70

70

70

3.0

12.0

22

3848

31.8

75

75

75

3.0

12.0

22

4418

36.9



Grade 1080/1230

Norminal Dia.

Cross Section

Yield Strength

Tensile Strength

Yield Load

Ultimate Load

Elongation

Liner Weight

(mm)

(Area)

≥(Mpa)

≥(Mpa)

(KN)

(KN)

(A/%)

(kg/m)

25

491

1080

1230

408

506

6

4.1

32

804

1080

1230

667

828

6

6.65

36

1018

1080

1230

845

1049

6

8.41

40

1257

1080

1230

1043

1295

6

10.34

50

1964

1080

1230

2121

2416

6

16.28

63.5

3167

1080

1230

3420

3895

6

26.2

75

4418

1080

1230 4771 5434 6 36.9



PRESTRESSED THREAD BAR

Company Introduction

Since the establishment of the company in 2008, Tianjin Cathay Pacific Steel Co.,Ltd has focused on Screw Threaded Steel products and related construction products. The products on the market are: FT Bar, its accessories: nuts, plates, couplers, spiral bars, PC strand wires and anchors, metal and plastic ducts, etc.

Our company always regards product quality as the lifeline of the company, adheres to the rigorous, efficient and innovative concept to serve customers, and we are willing to cooperate with new and old customers at home and abroad to provide customers with better quality service and quality products.



The Projects We Participated in:

1. Hongkong- Zhuhai-Macao Bridge

2. Mongolian Shangri-la Hotel

3. The Uzbek Railway Engineering

4. Cambodia San Secondary Hydropower Station

5. Brunei PMB Cross- Sea Bridge

6. Malaysia DASH CB4 Expressway Project

7. Papua New Guinea Hilton Hotel

8. Bangladesh Airport Projects

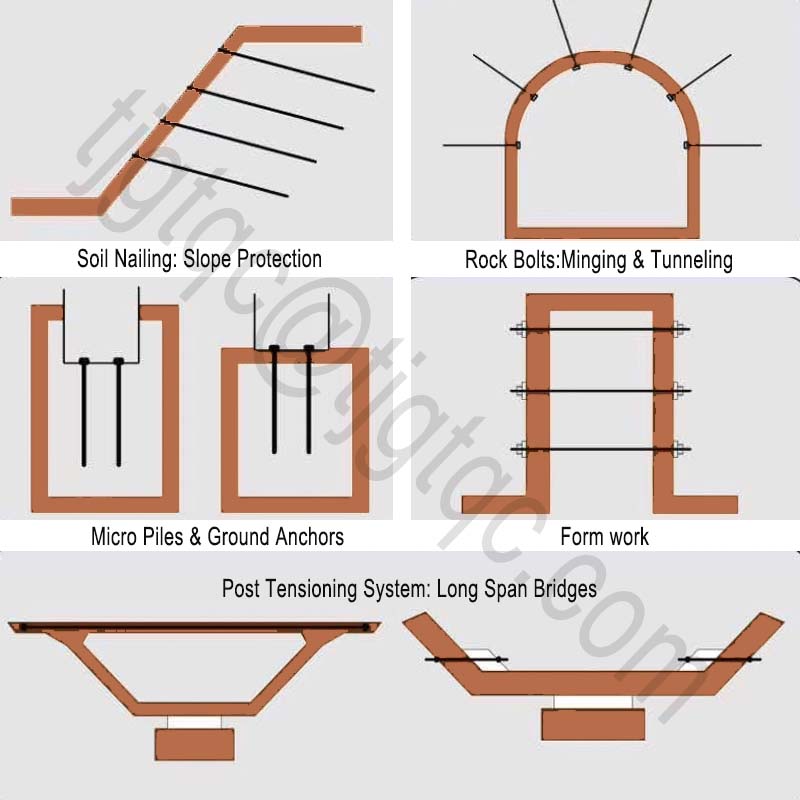

Application: Bridge, Tunneling, Mining, Soil Nailing,  Slope Stabilizing,

application

PC Bar3

pc bar

 Contact Information:

Wendy Lee

Tianjin Cathay Pacific Steel Co.,Ltd

Email: tjgtqc@tjgtqc.com

Mobile/WhatsApp/WeChat :+86-176 1227 5091

Add: B10-1-2, Kexin Industrial Area, Beichen District, Tianjin, China


Product detail pictures:

Factory Price Post Tensioning Thread Bar -
 M40 Tie Rod Anchor Bolt in Grade 1080/1230 – Cathay detail pictures

Factory Price Post Tensioning Thread Bar -
 M40 Tie Rod Anchor Bolt in Grade 1080/1230 – Cathay detail pictures


Related Product Guide:

We've numerous great employees customers excellent at promoting, QC, and working with kinds of troublesome difficulty inside the generation method for Factory Price Post Tensioning Thread Bar - M40 Tie Rod Anchor Bolt in Grade 1080/1230 – Cathay, The product will supply to all over the world, such as: Amsterdam , Myanmar , Armenia , Merchandise have been exported to Asia, Mid-east,European and Germany market. Our company has constantly been able to update the items performance and safety to meet the markets and strive to be top A on stable quality and sincere service. If you have the honor to do business with our company. we'll undoubtedly do our very best to support your business in China.

continuous threaded bar

Nominal Diameter Diameter H B L Nominal Section Nominal Weight
Dv Dh
mm mm mm mm mm mm mm2 kg/m
15 15 15 1.0 4.5 10 176 1.47
18 18 18 1.0 4.0 10 254.5 2.11
20 20 20 1.3 4.8 10 314 2.47
25 25 25 1.6 6.0 12 490.9 4.10
32 32 32 2.0 7.0 16 804.2 6.65
36 36 36 2.5 8.0 18 1018 8.41
40 40 40 3.0 8.0 20 1256.6 10.34
50 50 50 3.0 9.0 24 1963.5 16.28
60 60 60 3.0 10.0 22 2827 23.26
63.5 63 63.5 3.0 12.0 22 3167 26.20
65 65 65 3.0 12.0 22 3318 27.470
70 70 70 3.0 12.0 22 3848 31.8
75 75 75 3.0 12.0 22 4418 36.9
Grade500/630 NominalDia. CrossSection YieldStrength TensileStrength YieldLoad UltimateLoad Elongation NominalWeight
mm mm2 >=Mpa >=Mpa KN KN A/% KG/m
20 314 500 630 157 198 10 2.47
25 491 500 630 246 309 10 4.1
28 615 500 630 308 387 10 4.83
