factory low price Macalloy Tie Bars - Post Tensioned Bar – Cathay Detail:
Post Tensioned Bar
Product Introduction
Fully Threaded Steel Bar in Dia.75mm Grade 1080/1230 (or PT bars) are high-strength, high-precision, straight-line steel bars with external threads on the entire steel bar. The steel bar can be screwed onto the connector with internal threads at any section or screwed with a threaded nut with internal threads for anchoring. The utility model has the advantages of simple connection and anchorage, strong adhesion, safe and reliable tension and anchorage and the like, and is a novel material for developing prestressed concrete component.
Fully Threaded Steel Bar in Dia.75mm Grade 1080/1230 are currently used to anchor and support the dam body form of the dam foundation. In the cable-stayed bridge, fully threaded bars are used as the main ribs and bridge foundations of the main tower. The use of fully threaded steel bars saves steel, reduces component area and reduces component weight.
The continuous external thread is hot rolled. The shape of thread bar is shown as following figure. The main dimension ranges from ⌀15mm-⌀50mm and the grade ranges from 500/630Mpa to 1200/1330Mpa.
|
Nominal Diameter |
Diameter |
H |
B |
L |
Nominal Section |
Nominal Weight |
|
|
Dv |
Dh |
||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
Area(mm2) |
Kg/m |
|
15 |
15 |
15 |
1.0 |
4.5 |
10 |
176 |
1.47 |
|
18 |
18 |
18 |
1.2 |
4.0 |
10 |
254.5 |
2.11 |
|
20 |
20 |
20 |
1.3 |
4.8 |
10 |
314 |
2.47 |
|
25 |
25 |
25 |
1.6 |
6.0 |
12 |
490.9 |
4.10 |
|
32 |
32 |
32 |
2.0 |
7.0 |
16 |
804.2 |
6.65 |
|
36 |
36 |
36 |
2.5 |
8.0 |
18 |
1018 |
8.41 |
|
40 |
40 |
40 |
3.0 |
8.0 |
20 |
1256.6 |
10.34 |
|
50 |
50 |
50 |
3.0 |
9.0 |
24 |
1963.5 |
16.28 |
|
60 |
60 |
60 |
3.0 |
10.0 |
22 |
2827 |
23.36 |
|
63.5 |
63 |
63.5 |
3.0 |
12.0 |
22 |
3167 |
26.20 |
|
65 |
65 |
65 |
3.0 |
12.0 |
22 |
3318 |
27.4 |
|
70 |
70 |
70 |
3.0 |
12.0 |
22 |
3848 |
31.8 |
|
75 |
75 |
75 |
3.0 |
12.0 |
22 |
4418 |
36.9 |
|
Grade 1080/1230 |
Norminal Dia. |
Cross Section |
Yield Strength |
Tensile Strength |
Yield Load |
Ultimate Load |
Elongation |
Liner Weight |
|
(mm) |
(Area) |
≥(Mpa) |
≥(Mpa) |
(KN) |
(KN) |
(A/%) |
(kg/m) |
|
|
25 |
491 |
1080 |
1230 |
408 |
506 |
6 |
4.1 |
|
|
32 |
804 |
1080 |
1230 |
667 |
828 |
6 |
6.65 |
|
|
36 |
1018 |
1080 |
1230 |
845 |
1049 |
6 |
8.41 |
|
|
40 |
1257 |
1080 |
1230 |
1043 |
1295 |
6 |
10.34 |
|
|
50 |
1964 |
1080 |
1230 |
2121 |
2416 |
6 |
16.28 |
|
|
63.5 |
3167 |
1080 |
1230 |
3420 |
3895 |
6 |
26.2 |
|
|
75 |
4418 |
1080 |
1230 | 4771 | 5434 | 6 | 36.9 |
Company Introduction
Since the establishment of the company in 2008, Tianjin Cathay Pacific Steel Co.,Ltd has focused on Screw Threaded Steel products and related construction products. The products on the market are: FT Bar, its accessories: nuts, plates, couplers, spiral bars, PC strand wires and anchors, metal and plastic ducts, etc.
Our company always regards product quality as the lifeline of the company, adheres to the rigorous, efficient and innovative concept to serve customers, and we are willing to cooperate with new and old customers at home and abroad to provide customers with better quality service and quality products.
The Projects We Participated in:
1. Hongkong- Zhuhai-Macao Bridge
2. Mongolian Shangri-la Hotel
3. The Uzbek Railway Engineering
4. Cambodia San Secondary Hydropower Station
5. Brunei PMB Cross- Sea Bridge
6. Malaysia DASH CB4 Expressway Project
7. Papua New Guinea Hilton Hotel
8. Bangladesh Airport Projects
Application: Bridge, Tunneling, Mining, Soil Nailing, Slope Stabilizing,
Contact Information:
Wendy Lee
Tianjin Cathay Pacific Steel Co.,Ltd
Email: tjgtqc@tjgtqc.com
Mobile/WhatsApp/WeChat :+86-176 1227 5091
Add: B10-1-2, Kexin Industrial Area, Beichen District, Tianjin, China

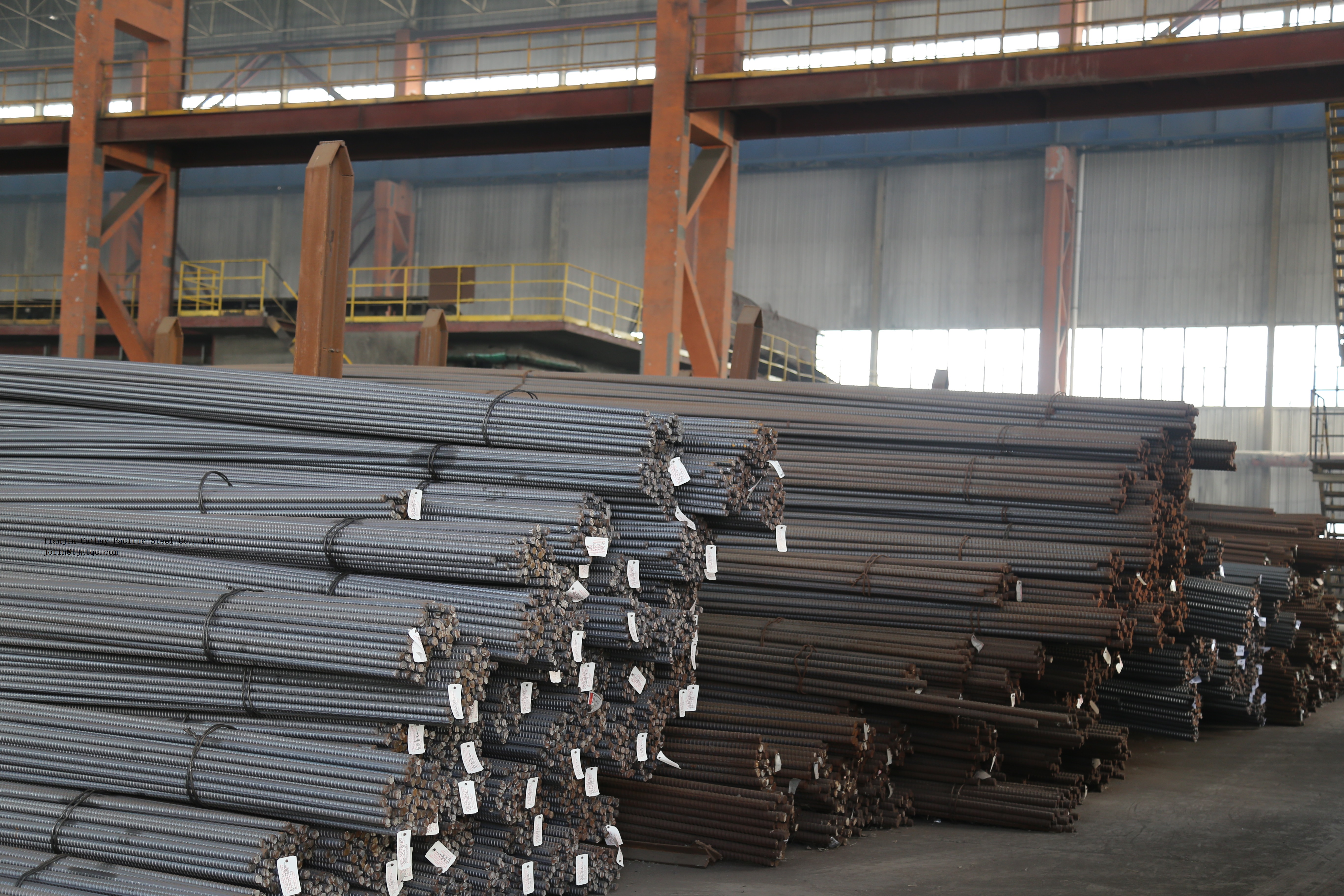

Product detail pictures:
Related Product Guide:
The key to our success is "Good Product Excellent, Reasonable Rate and Efficient Service" for factory low price Macalloy Tie Bars - Post Tensioned Bar – Cathay, The product will supply to all over the world, such as: Singapore , Bangalore , Holland , Our qualified engineering team will usually be prepared to serve you for consultation and feedback. We've been able to also deliver you with absolutely free samples to meet your needs. Best efforts might be made to offer you the ideal service and items. For anyone who is interested in our company and products, be sure to make contact with us by sending us emails or contact us right away. In order to know our solutions and organization. ar more, you can come to our factory to determine it. We are about to usually welcome guests from around the globe to our corporation. o create small business relations with us. Please genuinely feel no cost to speak to us for enterprise. nd we believe we have been gonna share the most effective trading practical experience with all our merchants.
| Nominal Diameter | Diameter | H | B | L | Nominal Section | Nominal Weight | |
| Dv | Dh | ||||||
| mm | mm | mm | mm | mm | mm | mm2 | kg/m |
| 15 | 15 | 15 | 1.0 | 4.5 | 10 | 176 | 1.47 |
| 18 | 18 | 18 | 1.0 | 4.0 | 10 | 254.5 | 2.11 |
| 20 | 20 | 20 | 1.3 | 4.8 | 10 | 314 | 2.47 |
| 25 | 25 | 25 | 1.6 | 6.0 | 12 | 490.9 | 4.10 |
| 32 | 32 | 32 | 2.0 | 7.0 | 16 | 804.2 | 6.65 |
| 36 | 36 | 36 | 2.5 | 8.0 | 18 | 1018 | 8.41 |
| 40 | 40 | 40 | 3.0 | 8.0 | 20 | 1256.6 | 10.34 |
| 50 | 50 | 50 | 3.0 | 9.0 | 24 | 1963.5 | 16.28 |
| 60 | 60 | 60 | 3.0 | 10.0 | 22 | 2827 | 23.26 |
| 63.5 | 63 | 63.5 | 3.0 | 12.0 | 22 | 3167 | 26.20 |
| 65 | 65 | 65 | 3.0 | 12.0 | 22 | 3318 | 27.470 |
| 70 | 70 | 70 | 3.0 | 12.0 | 22 | 3848 | 31.8 |
| 75 | 75 | 75 | 3.0 | 12.0 | 22 | 4418 | 36.9 |
| Grade500/630 | NominalDia. | CrossSection | YieldStrength | TensileStrength | YieldLoad | UltimateLoad | Elongation | NominalWeight |
| mm | mm2 | >=Mpa | >=Mpa | KN | KN | A/% | KG/m | |
| 20 | 314 | 500 | 630 | 157 | 198 | 10 | 2.47 | |
| 25 | 491 | 500 | 630 | 246 | 309 | 10 | 4.1 | |
| 28 | 615 | 500 | 630 | 308 | 387 | 10 | 4.83 |
